B3000通用型矢量驱动器采用独特的磁通矢量技术，通过对磁通电流和转矩电流的解耦控制及自动转矩提升技术，保证普通感应电机0.5Hz 180%启动转矩，转速精度0.5%以内；采用特殊的控制方式，减小变频器驱动引起的电机侧开关应力，延长电机寿命，降低电机温升和电磁噪音。良好的动静态性能，强过载能力，广泛应用于机床、拉丝、起重、钢铁、塑料、纺织、造纸、印刷包装等行业。

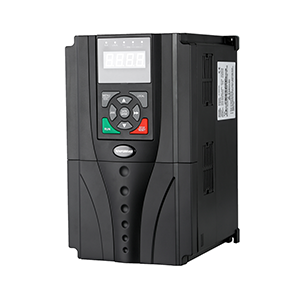

『各功率段机型结构外型图』
适合型号：
4T0022G |
适合型号：
4T0040G |
适合型号：
4T0004G～4T0075G |
| |
|
|
适合型号：
4T0100G～4T0550G
|
适合型号：
4T0750G～4T2800G
|
适合型号：
4T1320G～4T5600G
|
适合型号：
4T6300G～4T8000G |
|
|
* 以上图片仅为部分产品结构，同系列各机型详细外型结构参数资料请参考该产品说明书。
『技术特点』
* 行业领先的开环矢量控制技术;
* 独特的电流限定和母线电压控制技术;
* 优越的加减速性能;
* 前沿的调制算法;
* 丰富的内置功能：PLC，摆频，定长，计数，线速度闭环等；
『部份典型行业应用』
广泛应用于：印刷包装、线缆机械、拉丝机、纺织机械、机床、注塑机、制砖设备、木工机械、工业离心机、行车起重等行业。
『B3000系列规格型号』
|
变频器型号
G：恒转矩负载
P：变转矩负载
|
额定容量（kVA) |
额定输入电流（A） |
额定输出电流（A） |
适配电机（kW) |
| B3000-2S0004G |
1.0 |
5.4 |
2.5 |
0.4 |
| B3000-2S0007G |
1.5 |
8.2 |
4.0 |
0.75 |
| B3000-2S0015G |
3.0 |
14.0 |
7.5 |
1.5 |
| B3000-2S0022G |
4.0 |
23.0 |
10.0 |
2.2 |
| B3000-2S0040G |
5.9 |
30.0 |
15.0 |
4.0 |
| B3000-2S0055G |
8.5 |
50.0 |
25.0 |
5.5 |
| B3000-2S0075G |
11.0 |
64.0 |
32.0 |
7.5 |
| B3000-2T0004G |
1.0 |
3.2 |
2.5 |
0.4 |
| B3000-2T0007G |
1.5 |
6.4 |
4.0 |
0.75 |
| B3000-2T0015G |
3.0 |
10.0 |
7.5 |
1.5 |
| B3000-2T0022G |
4.0 |
12.0 |
10.0 |
2.2 |
| B3000-2T0040G |
5.9 |
19.0 |
17.0 |
4.0 |
| B3000-2T0055G |
8.5 |
28.0 |
25.0 |
5.5 |
| B3000-2T0075G |
11.0 |
35.0 |
32.0 |
7.5 |
| B3000-4T0007G/0015P |
1.5/3.0 |
3.4/5.0 |
2.3/3.7 |
0.75/1.5 |
| B3000-4T0015G/0022P |
3.0/4.0 |
5.0/5.8 |
3.7/5.0 |
1.5/2.2 |
| B3000-4T0022G/0040P |
4.0/6.3 |
5.8/10.0 |
5.0/9.0 |
2.2/4.0 |
| B3000-4T0040G/0055P |
6.3/8.5 |
10.0/15.5 |
9.0/13.0 |
4.0/5.5 |
| B3000-4T0055G/0075P |
8.5/11.0 |
15.5/20.5 |
13.0/17.0 |
5.5/7.5 |
| B3000-4T0075G/0110P |
11.0/17.0 |
20.5/26.0 |
17.0/25.0 |
7.5/11 |
| B3000-4T0110G/0150P |
17.0/21.0 |
26.0/35.0 |
25.0/32.0 |
11/15 |
| B3000-4T0150G/0185P |
21.0/24.0 |
35.0/38.5 |
32.0/37.0 |
15/18.5 |
| B3000-4T0185G/0220P |
24.0/30.0 |
38.5/46.5 |
37.0/45.0 |
18.5/22 |
| B3000-4T0220G/0300P |
30.0/40.0 |
46.5/62.0 |
45.0/60.0 |
22/30 |
| B3000-4T0300G/0370P |
40.0/50.0 |
62.0/76.0 |
60.0/75.0 |
30/37 |
| B3000-4T0370G/0450P |
50.0/60.0 |
76.0/92.0 |
75.0/90.0 |
37/45 |
| B3000-4T0450G/0550P |
60.0/72.0 |
92.0/113.0 |
90.0/110.0 |
45/55 |
| B3000-4T0550G/0750P |
72.0/100.0 |
113.0/157.0 |
110.0/152.0 |
55/75 |
| B3000-4T0750G/0900P |
100.0/116.0 |
157.0/180.0 |
152.0/176.0 |
75/90 |
| B3000-4T0900G/1100P |
116.0/138.0 |
180.0/214.0 |
176.0/210.0 |
90/110 |
| B3000-4T1100G/1320P |
138.0/167.0 |
214.0/256.0 |
210.0/253.0 |
110/132 |
| B3000-4T1320G/1600P |
171.0/201.0 |
256.0/307.0 |
253.0/304.0 |
132/160 |
| B3000-4T1600G/1850P |
201.0/250.0 |
307.0/355.0 |
304.0/350.0 |
160/185 |
| B3000-4T1850G/2000P |
230.0/250.0 |
355.0/385.0 |
350.0/380.0 |
185/200 |
| B3000-4T2000G/2200P |
250.0/280.0 |
385.0/430.0 |
380.0/426.0 |
200/220 |
| B3000-4T2200G/2500P |
280.0/316.0 |
430.0/488.0 |
426.0/470.0 |
220/250 |
| B3000-4T2500G/2800P |
316.0/349.0 |
488.0/525.0 |
470.0/520.0 |
250/280 |
| B3000-4T2800G/3150P |
349.0/395.0 |
525.0/605.0 |
520.0/590.0 |
280/315 |
| B3000-4T3150G/3550P |
395.0/428.0 |
605.0/667.0 |
590.0/650.0 |
315/355 |
| B3000-4T3550G/4000P |
428.0/474.0 |
667.0/701.0 |
650.0/690.0 |
355/400 |
| B3000-4T4000G/4500P |
474.0/510.0 |
701.0/789.0 |
690.0/775.0 |
400/450 |
| B3000-4T4500G/5000P |
510.0/586.0 |
789.0/877.0 |
775.0/860.0 |
450/500 |
| B3000-4T5000G/5600P |
586.0/625.0 |
877.0/982.0 |
860.0/950.0 |
500/560 |
| B3000-4T5600G/6300P |
625.0/724.0 |
982.0/1184.0 |
950.0/1100.0 |
560/630 |
| B3000-4T6300G/8000P |
724.0/921.0 |
1184.0/1500.0 |
1100.0/1400.0 |
630/800 |
| B3000-4T8000G/10000P |
921.0/1119.0 |
1500.0/1800.0 |
1400.0/1700.0 |
800/1000 |
|
